fully automatic contactless tonometer

fully automatic contactless tonometer

Product characteristics

The automatic toneometer uses image control and characteristics recognition for automatic positioning

In 3D of Xyz, with reliable judgment and measurement results, and easy to use. The air -free approach to measure

PIO can also be used to measure the thickness of the cornea.

Performance characteristics

The automatic 3D positioning of the XYZ allows a precise and reliable measurement measurement

fully automatic for the data of the right eye and the left eye without

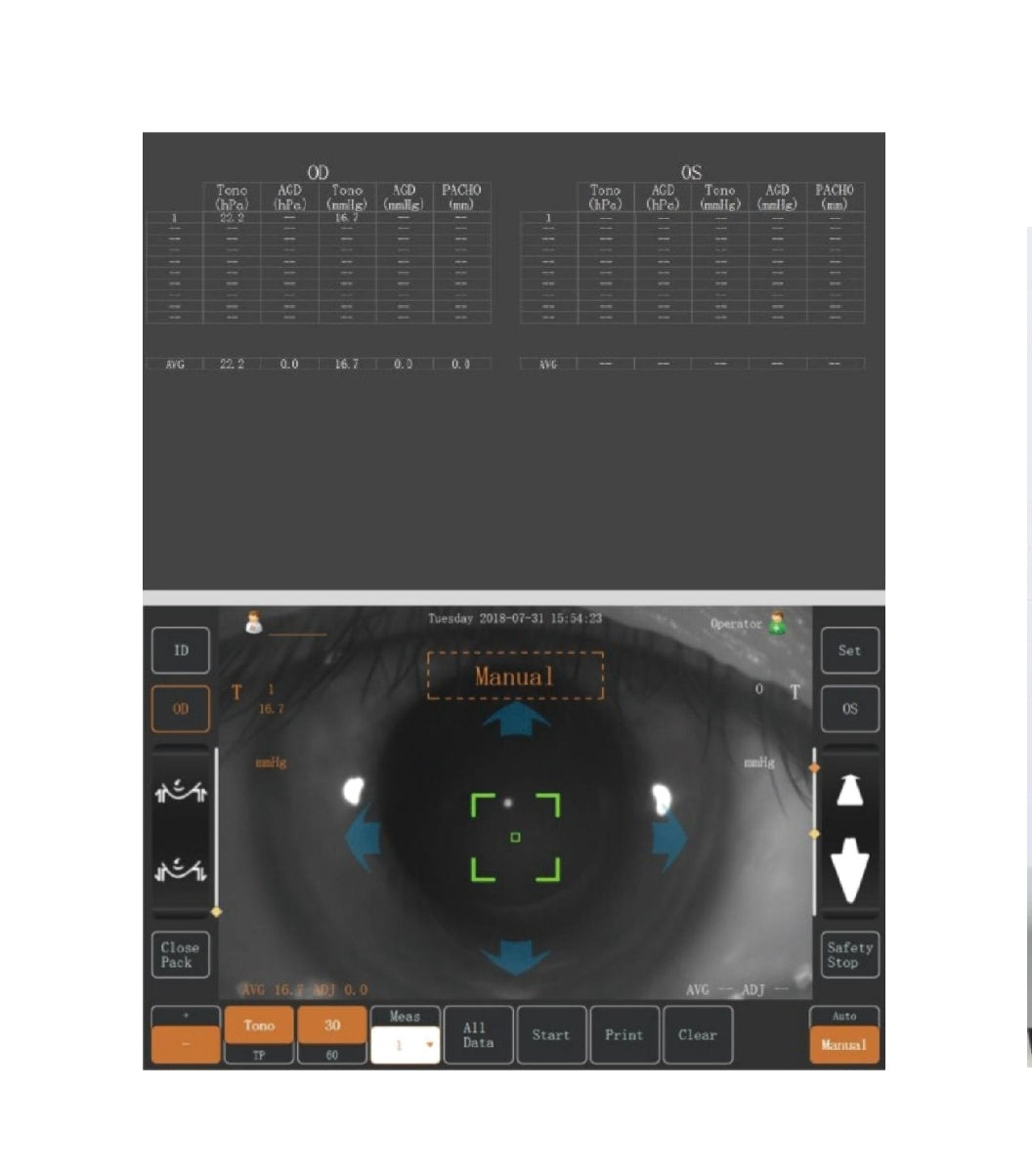

Manual switching Tonometer easy to use with color touch screen

Stable Pio data thanks to the ambient air measurement

To compensate for the thickness of the cornea, measurement of the IOP

Specifications

Image Acquisition System

Pio beach

measurement

1.30mmHg/60mmHg (St-1000p) System

Double sensor system with optics and

Air blowing measurement mode

Working distance

> 11mm

Auto/manual

R/L

Display of

results

Size

Weight

Food

Display

Exit port

Automatic detection and displacement

10 measurement and calculation times per test with printing of the 3 best results compatible by CEIL

380 mm (l) x 460mm (l) x 505mm (h)

19.7kg 220V/50Hz

10.1-LED touch screen of 1

USB2.0 inch

Product characteristics

1. Fully automatic operation, one click, automatic eyes measurement (chinnière is also set

automatically). Mentonnières from other foreign brands are not automatically adjusted.

2. The air is soft and the patient does not feel tension or pressure (especially for patients with ophthalmic diseases, eyes are

Very painful and excessive atmospheric pressure will worsen the patient's suffering).

3. Integrated computer, integrated design, space saving, and the device of the device can be filmed at 45 degrees, the doctor can operate

Left and right sides of the device, and observe the patient's condition at the same time.

4. 10.1 inch rotary screen, all the elements are clear at a glance, it is not necessary to go in the background to select other operations.

5. Multiple automatic measures, calculation of the average, the results are more precise.

6. The measurement function of the thickness of the cornea is optional

7. The equipment is stable and reproducible

Note with the evolution of technology, specifications and design are likely to be modified without notice.
