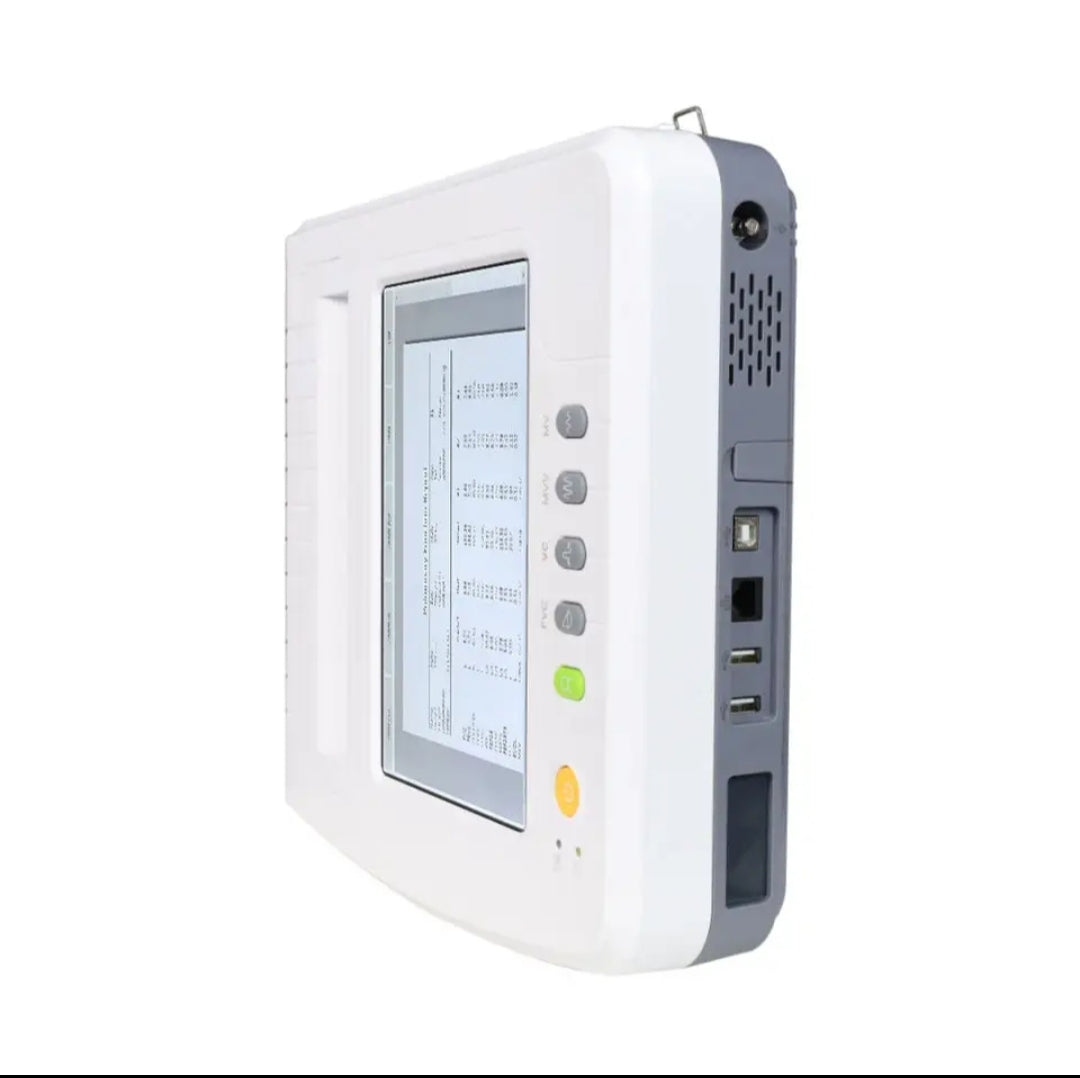

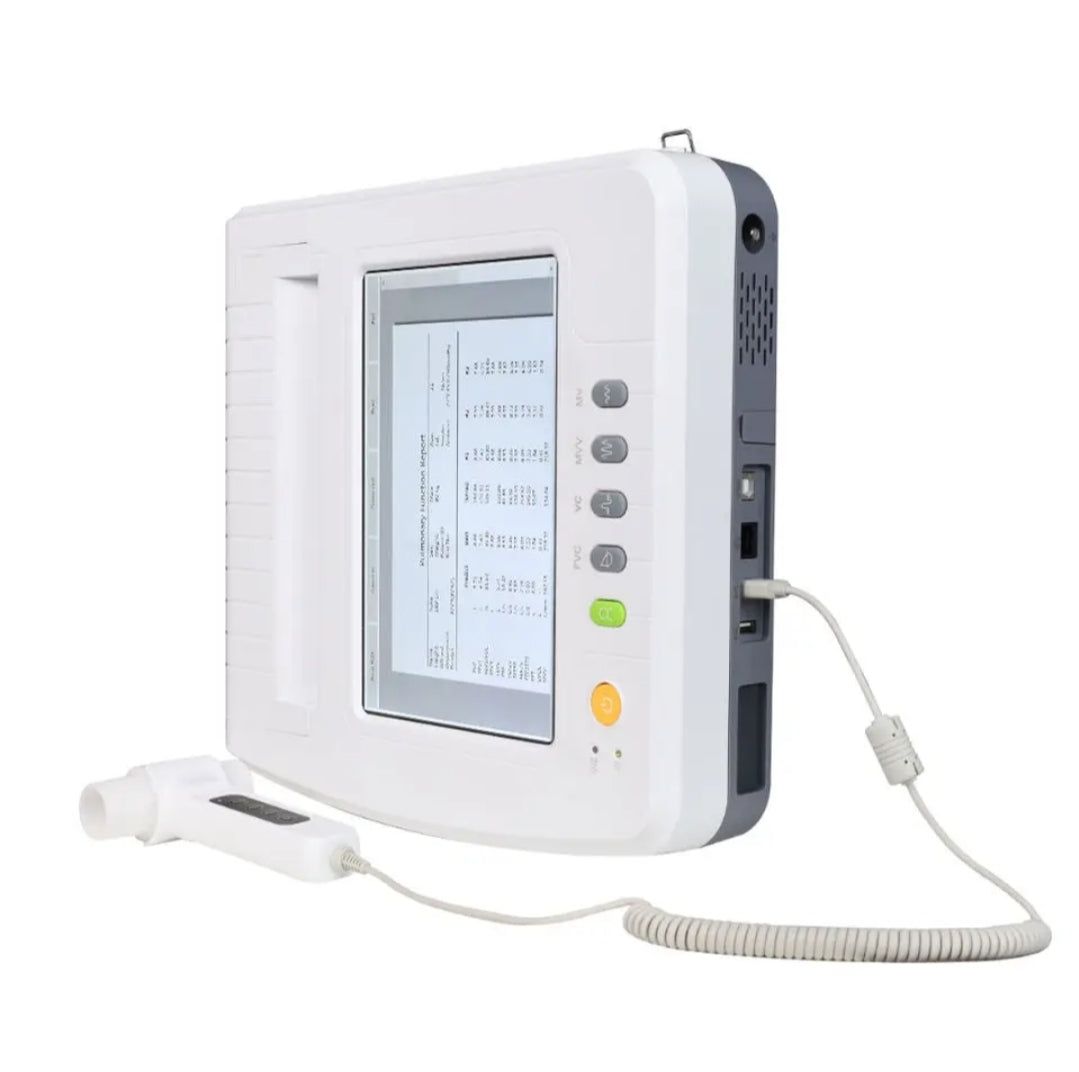

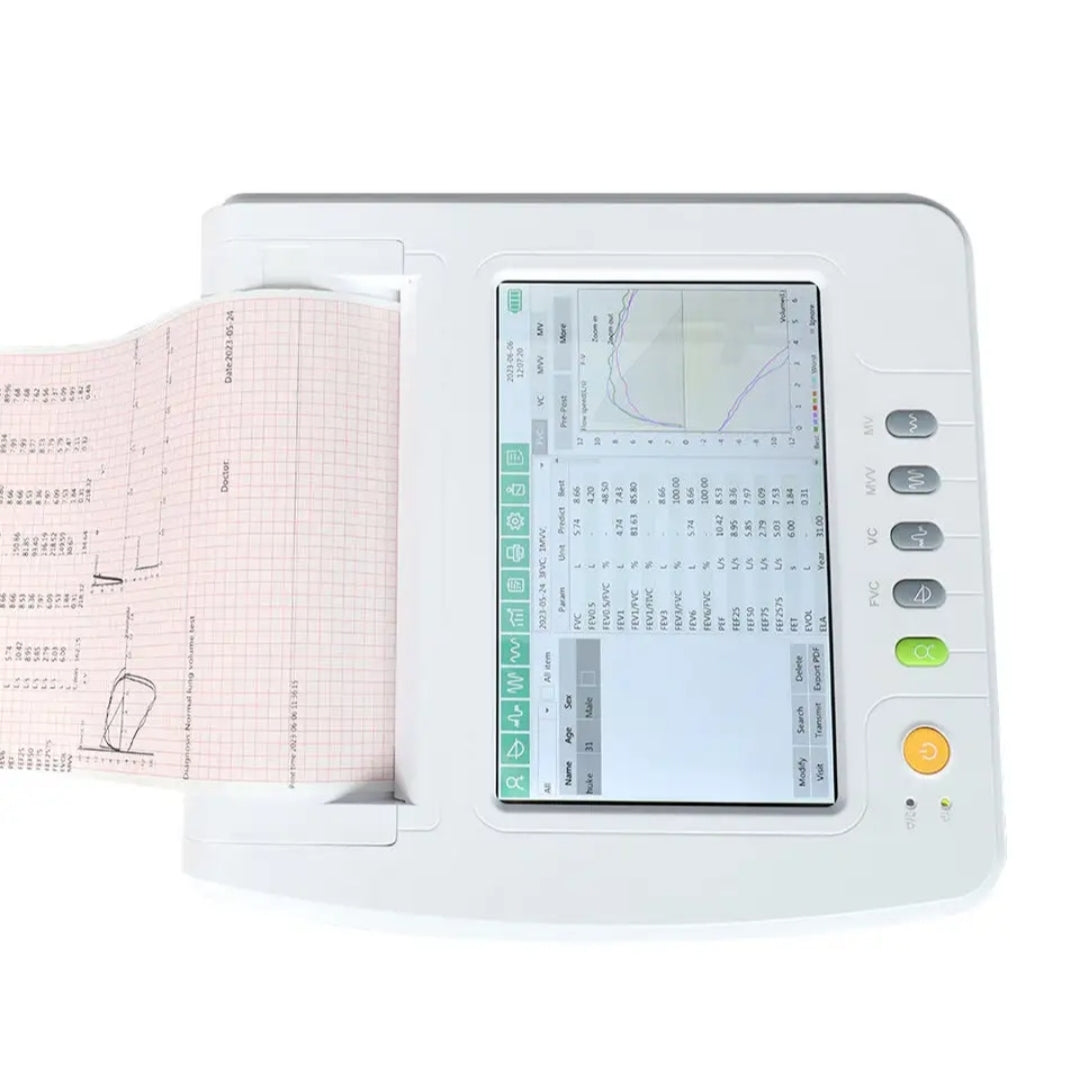

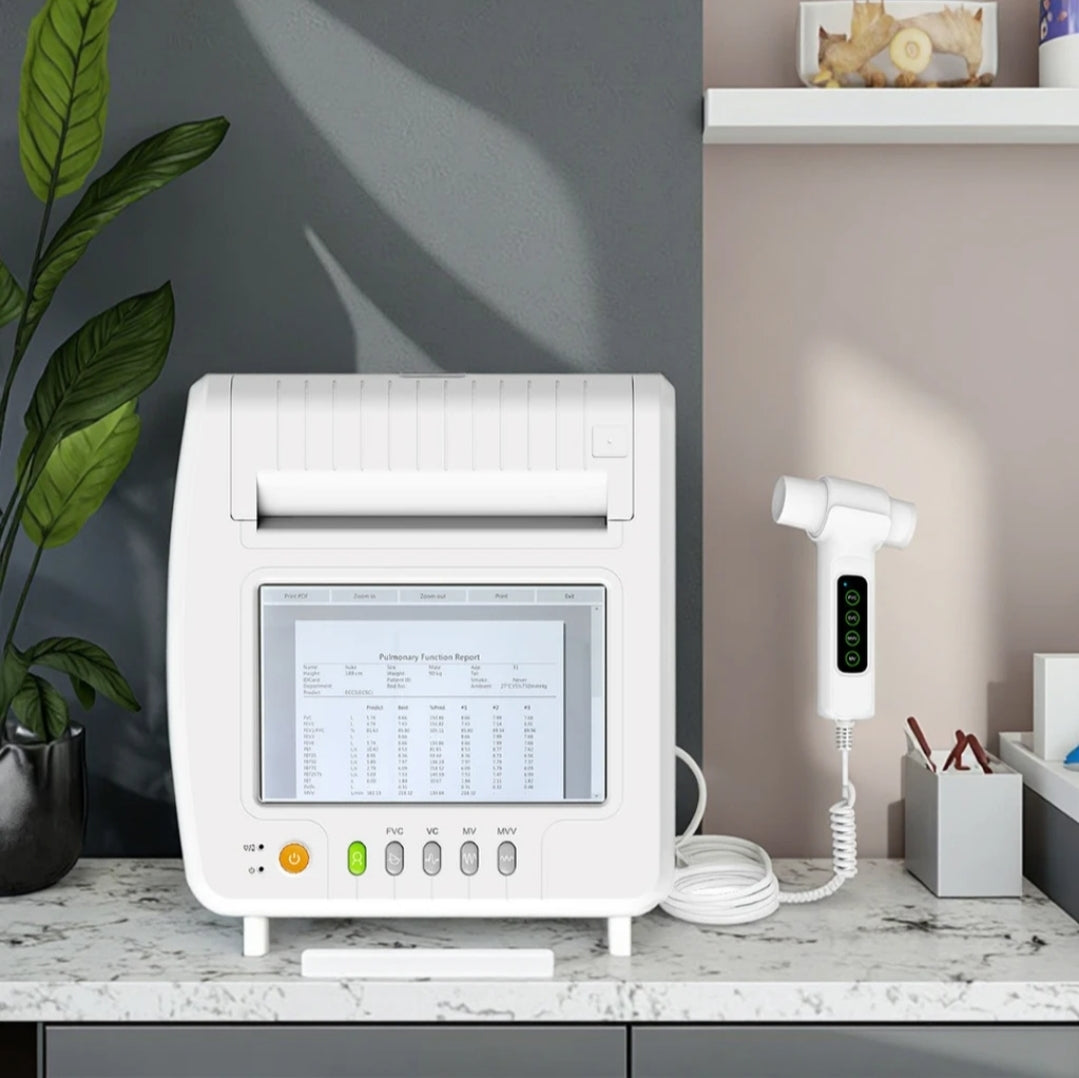

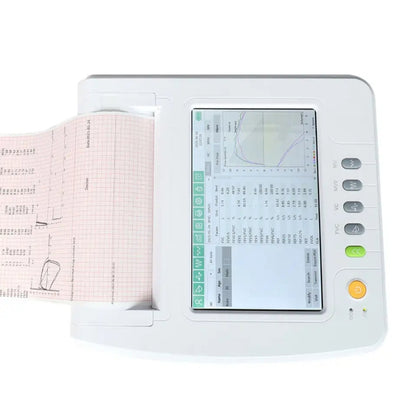

Portable Spirometre for Sp100 B Hospital B Medical SPIROMETER with plastic power supply source

Volume rang  0-10L  , 7 pouces

The Spirometer is a portable device for testing pulmonary function,



parameters related to FVC, VC, MVW and MV functions. It can be used



test before/ after medication, etc. which can provide the test results



make diagnosis.



Function



- Differential pressure detection technology, with a professional lung func-



tion softvware, which can measure over 100 parameters related to FVC, VC,



MW and MV functions.



- Measure inspiratory and expiratory parameters, real-time curve display.



- BTPS Correction function, measure temperature, humidity and barometric



pressure automatically.



- Quality control function, automatic QC rating.



- Calibration control function: volume calibration, three flows verification.



- Display the optimal value from many measurements.



- The tester condition can be reflected by the ratio of the measured value



and the predicted value.



- Flow-volume and volume-time curve.



- Data memory, delete and information review functions.



- Trend chart display.



- Prompt functions for over-limit of volume and flow.



- Rechargeable lithium battery, with charging prompt.



- Battery power indication.



Built-in multiple predicted values.



- Support bronchial dilation/ provocation test.



- Pulmonary function assessment.



- Follow-up questionnaires function.



- Patient information can be entered, managed and queried.



- The external printer can be connected to print and output the test report.



- 10.1" capacitive touch screen.



- Wi-Fi function.



- Voice prompt function.



Built-in ID card reader (optional).



Performance



- Display mode: 10.1" color LCD



- Display resolution: 1280 * 800



- Volume range: 0 L~ 10 L (BTPS)



- Volume accuracy:t3% or t 0.05 L (whichever is greater)



- Flow range: 0 L/s 16 L/s (BTPS)



- Flow accuracy: t 5% or t 0.17 L/s (whichever is greater)



- Power consumption: P < 50 V·A



- Power supply: DC 7.4 V rechargeable lithium battery or power



adapter (AC220V 50Hz)



Safety clas: class I or internally powered equipment, type BF ap-



plied part



Accessories



- A pulmonary function probe



- A User Manual



- 100 mouthpieces (round: 50, flat: 50)



- Apower adapter (including cord set)

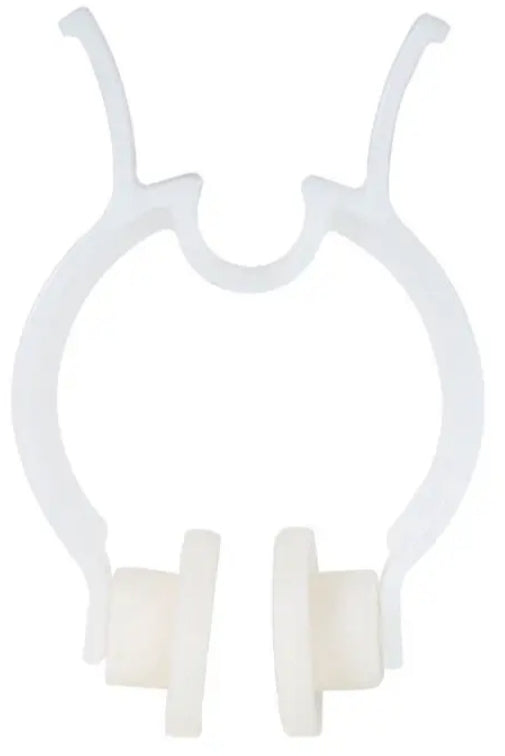

- Anose clip (optional)



Physical characteristic



Dimension: 275 mm (L) X 220 mm (W) X 67 mm (H)



- Weight: about 1800 g
